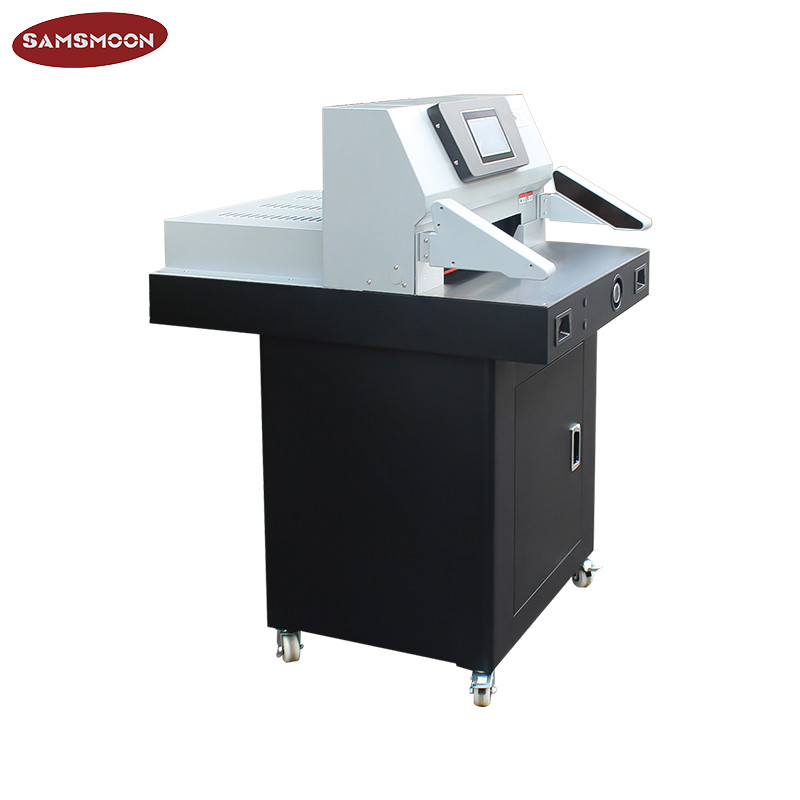

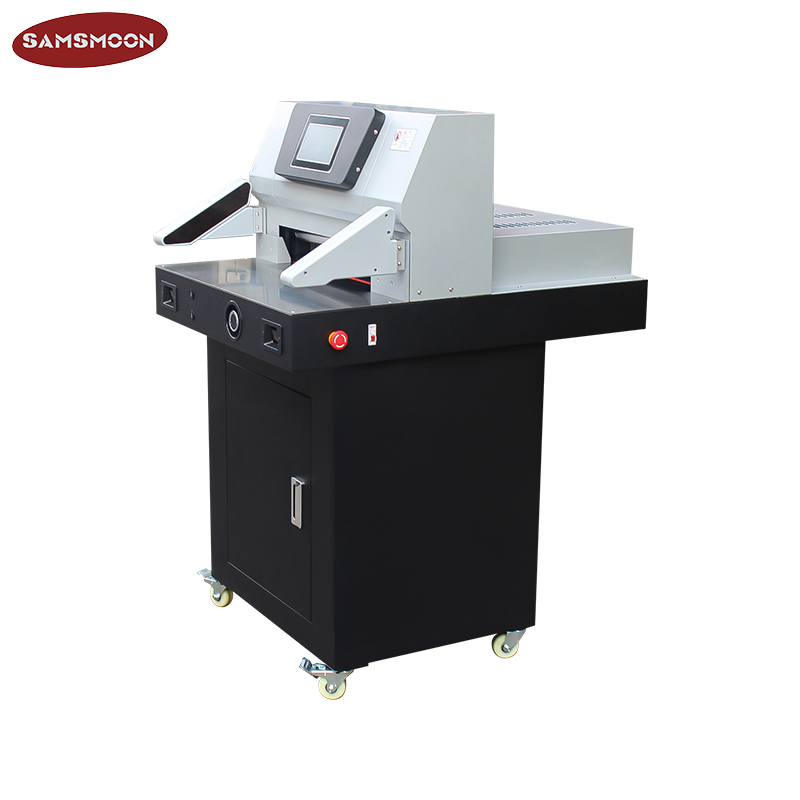

Samsmoon 460mm Guillotine Electric Heavy Paper Cutter A3 Paper Cutting Machine A3 Paper Cutter for Printing Shop

1.Max. Cutting Size:460×460mm
2.Min. Cutting Size:30mm
3.Max. Cutting Thickness:60mm
4.Push Mode:Electric
5.Safety Protection:IR (Infrared photoelectric)
  • CM460X
  • Samsmoon
Availability:
Quantity:

Samsmoon 460mm guillotine Electric Heavy Paper Cutter a3 paper cutting machine a3 paper cutter for printing shop


*Features

1.IR indicator

IR Indicate Cutting Position Which is Clear and Convenient to Locate&Adjust.

2.High Speed Steel Blade Design

Sharp Steel Blade,Easy to Cut.

3.Intelligent Circuit Control System

High Quality Mainboard Make the Program More Stable & Improve the Efficiency.

4.High Quality Material

Thicken & Thicken Material with High Strength,Durable and Stable.

5.Pressing before Cutting Technical Device

6.Program Control Circuit Design,Double Guide Paper Pushing

7.Back & Front Protecting Shield and Safety Switch

8.Fine Tuning of Cutting Depth Technical Device

9.Digital Display Size before and after Cutting

with IR Cutting Indicating Line,High Precision CNC Paper Pushing Mechanism.

10.Double Hands Interlock Device and Auto Reset

Makes it Safe to Operate.

11.Self-detection Function

More Convenient.

12.Fashionable & Simple Design

Nice-looking and Practical.

13.DC motors

Adopting DC motor design, output power is 2.5 times of AC moto




*Specification



ModelCM460XMax. Cutting size460*460mm
Min. Cutting size30mmMax. Cutting thickness0-60mm
Cutting Precision±0.3mmCutting Speed3s
Control MethodDC motorsPress ModeDC motors
Push ModeProgram ControlDispaly7 Inch Touch Screen
PusherSingle screw double guide railPower220V/12A/700W
Machine Size930*740*1300mmNW150KG
Package Size1060*880*1480mmGW180KG
