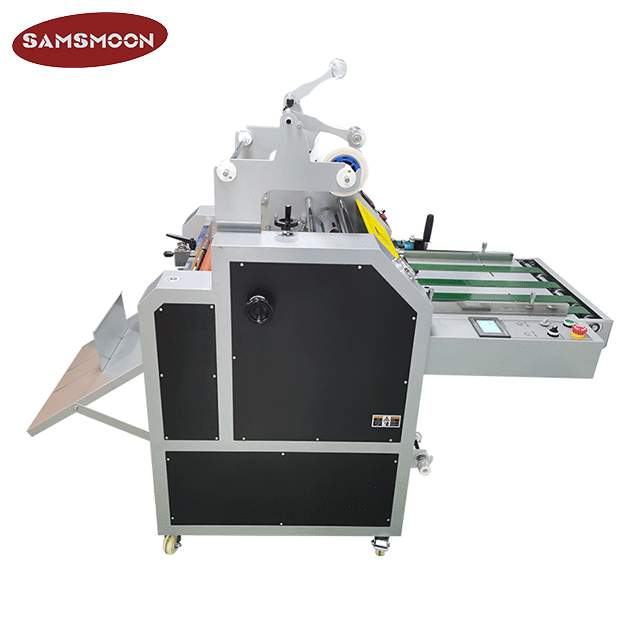

SRL-49HH High Quality Hydraulic Automatic Roll Laminating Machine Laminator

The automatic laminating machine is widely used in printing factories, photo shops. With the high quality can guarantee the book will be very perfect and beautiful.
  • SRL-49HH
  • Samsmoon
Max laminating size :
Max laminating thickness:

Electric Automatic Roll Laminating Machine

Product main featurers:

1.PLC intelligent control, touch screen display system, frequency convension speed regulation, 250w three-phase AC wheel box geared motor.

2.Automatically tapping(the size of tapping can be set arbitrarily),and the finished product will be automatically broken(pneumatically broken).

3.Intelligent temperature control, double protection of temperature out of control alarm, infrared internal heating.

4.Manual hydraulic control system, anti-vibration pressure indicator.

5.Single side anti-curling, equipped with trimming cutter and detted cutter.

6.The diameter of the steel roller is 180mm, and the diameter of the lower rubber roller is 100mm.

7.The lower rubber is made of non-adhesive and high temperature resistant silica gel.

Technical parameters:

Max.liminating width490mm
Max liminating thickness2mm
Laminating speed 0~8m/min
Max.liminating temperature160℃
Steel roller diameter180mm
Rubber roller diameter100mm
Heating methodInfrared internal heating
Heating power3500w
Motor power250w
Anti-curling functionYes
Auto overlap functionYes
Auto pull off functionYes
Machine size 1450*900*1380mm
Net weight/Gross weight300kg/350kg
