Electric Automatic Roll Laminating Machine SRL-45EP Electric Roll Laminating Machine Double Side Roll Laminating Machine 450mm Hot Laminator , find complete details about SRL-45EP Electric Roll Laminating Machine Double Side Roll Laminating Machine 450mm Hot Laminator , electric roll laminating machine, double side roll laminator, 450mm hot laminator - Hangzhou Zhongguan Hanming Technology Co., Ltd
Product main featurers:
1.Suitable for all kinds of paper laminating, single/double side laminating, roll to roll laminating, finished product winding, single side anti-curling, and the laminating effect is flat and not bend.
2.Multifunctional body, with optional ironing function.
3.The conveyor belt feeds paper synchronously, and the finished product is automatically wound up.
4.Large-diameter mirror steel roller, 110mm in diameter, chrome-plated on the surface, the mirror effect is good.
5.The laminating pressure is very compact, and the laminating effect is good,no bubbles, no snowflakes.
6.Intelligent temperature control system, precise temperature control, the highest temperature is 160℃, temperature out of control alarm system, double protection.
7.Large power 80w AC wheel box geared motor, which can rotate forward/reversely, without extreme regulation, the fastest laminating speed is 6m/min.
8.Single side anti-curling, the laminating effect is smooth and no bend.
Technical parameters:
Model | SRL-45EP |
Max.liminating width | 450mm |
Max liminating thickness | 2mm |
Laminating speed | 0~6m/min |
Max.liminating temperature | 160℃ |
Display | LCD |
Steel roller diameter | 110mm |
Rubber roller diameter | 75mm |
Heating method | Infrared internal heating |
Heating power | 1600w |
Motor power | 80w |
Anti-curling function | Yes |
Auto overlap function | No |
Auto pull off function | Yes |
Voltage | 220V/50HZ |
Machine size | 1220*750*1220mm |
Net weight/Gross weight | 170kg/200kg |

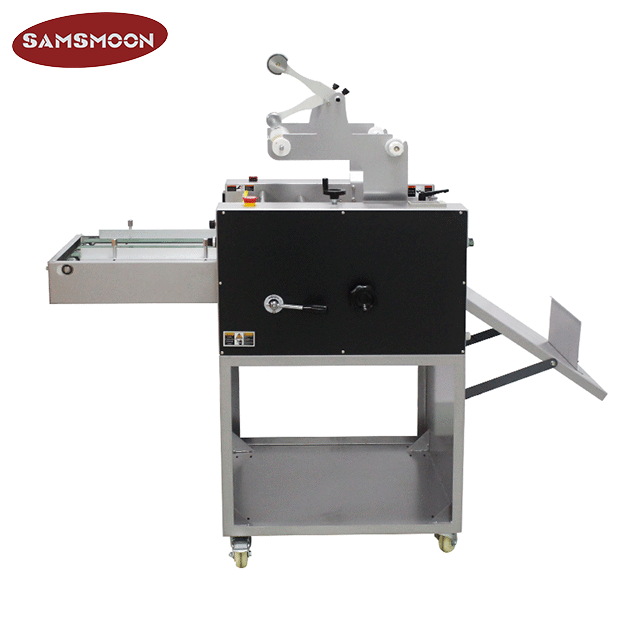

Product show:
Package:
Electric Automatic Roll Laminating Machine SRL-45EP Electric Roll Laminating Machine Double Side Roll Laminating Machine 450mm Hot Laminator , find complete details about SRL-45EP Electric Roll Laminating Machine Double Side Roll Laminating Machine 450mm Hot Laminator , electric roll laminating machine, double side roll laminator, 450mm hot laminator - Hangzhou Zhongguan Hanming Technology Co., Ltd
Product main featurers:
1.Suitable for all kinds of paper laminating, single/double side laminating, roll to roll laminating, finished product winding, single side anti-curling, and the laminating effect is flat and not bend.
2.Multifunctional body, with optional ironing function.
3.The conveyor belt feeds paper synchronously, and the finished product is automatically wound up.
4.Large-diameter mirror steel roller, 110mm in diameter, chrome-plated on the surface, the mirror effect is good.
5.The laminating pressure is very compact, and the laminating effect is good,no bubbles, no snowflakes.
6.Intelligent temperature control system, precise temperature control, the highest temperature is 160℃, temperature out of control alarm system, double protection.
7.Large power 80w AC wheel box geared motor, which can rotate forward/reversely, without extreme regulation, the fastest laminating speed is 6m/min.
8.Single side anti-curling, the laminating effect is smooth and no bend.
Technical parameters:
Model | SRL-45EP |
Max.liminating width | 450mm |
Max liminating thickness | 2mm |
Laminating speed | 0~6m/min |
Max.liminating temperature | 160℃ |
Display | LCD |
Steel roller diameter | 110mm |
Rubber roller diameter | 75mm |
Heating method | Infrared internal heating |
Heating power | 1600w |
Motor power | 80w |
Anti-curling function | Yes |
Auto overlap function | No |
Auto pull off function | Yes |
Voltage | 220V/50HZ |
Machine size | 1220*750*1220mm |
Net weight/Gross weight | 170kg/200kg |
Product show:
Package:
Supply Ability | Packaging Details | Port |
800 Unit/Units per Month | Export plywood case | Shanghai, Ningbo, Yiwu,Guangzhou, Shenzhen(any Port in China) |
Lead Time | ||||
Quantity(Units) | 1 - 1 | 2 - 5 | 6 - 50 | >50 |
Est. Time(days) | 3 | 7 | 35 | To be negotiated |
