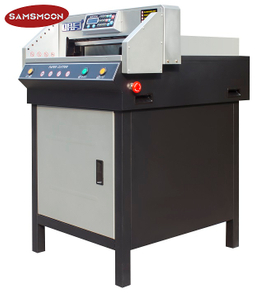

SPC-498H Professional Hydraulic Paper Cutting Machine 490mm Paper Cutting Machine
| Model | SPC-498H |
| Max. Cutting Size | 490mm*490mm |
| Min.Cutting Size | 30mm |
| Max. Cutting Thickness | 80mm |
| Cutting Precision | 0.2mm |
| Press mode | Hydraulic |
| Cut Mode | Hydraulic |
| Push Mode | Program Control |
| Power | 2000W |
| Machine Size | 1400*780*1180mm |
| Weight | Net:380KG, Gross:430KG |
Main Features
Hydraulic power control system, joint-venture brand motors, provide strong power; Taiwan Hydraulic control technology ensures the quality of the machine.
7inch Touch screen, program control, segment, numercal control, and one key switching of different scenes
the heavy-duty frame adopts special craftsmanship, is not easy to be deformed, and the cutting accuracy is guaranteed.
The patended design of the foldable structure of the paper pushing platform solves the problem of the inaccessibility of machines in business offices and reduces transporation costs.
The design of the mechanical foot pedal press paper alignment, easy and reliable, meets European CE safety standards, machine stability characteristics, suitable for thick paper cutting.
The operating table is made of 10mm thick stainless steel plate.
The rear full closed cover type, the front closed infra red infrared safety device, and the double button cutting type is used to ensure the safety of the operator and other people.
Static hydraulic pump, paper clamping pressure and paper cutting pressure can be adjusted according to the cutting product, with low noise, strong and durable.
Patented oblique cutter technology. It is easier to cut thick paper, and it also reduces the abrasion of the frame when it is cut down.
SPC-498H Professional Hydraulic Paper Cutting Machine 490mm Paper Cutting Machine
| Model | SPC-498H |
| Max. Cutting Size | 490mm*490mm |
| Min.Cutting Size | 30mm |
| Max. Cutting Thickness | 80mm |
| Cutting Precision | 0.2mm |
| Press mode | Hydraulic |
| Cut Mode | Hydraulic |
| Push Mode | Program Control |
| Power | 2000W |
| Machine Size | 1400*780*1180mm |
| Weight | Net:380KG, Gross:430KG |
Main Features
Hydraulic power control system, joint-venture brand motors, provide strong power; Taiwan Hydraulic control technology ensures the quality of the machine.
7inch Touch screen, program control, segment, numercal control, and one key switching of different scenes
the heavy-duty frame adopts special craftsmanship, is not easy to be deformed, and the cutting accuracy is guaranteed.
The patended design of the foldable structure of the paper pushing platform solves the problem of the inaccessibility of machines in business offices and reduces transporation costs.
The design of the mechanical foot pedal press paper alignment, easy and reliable, meets European CE safety standards, machine stability characteristics, suitable for thick paper cutting.
The operating table is made of 10mm thick stainless steel plate.
The rear full closed cover type, the front closed infra red infrared safety device, and the double button cutting type is used to ensure the safety of the operator and other people.
Static hydraulic pump, paper clamping pressure and paper cutting pressure can be adjusted according to the cutting product, with low noise, strong and durable.
Patented oblique cutter technology. It is easier to cut thick paper, and it also reduces the abrasion of the frame when it is cut down.
