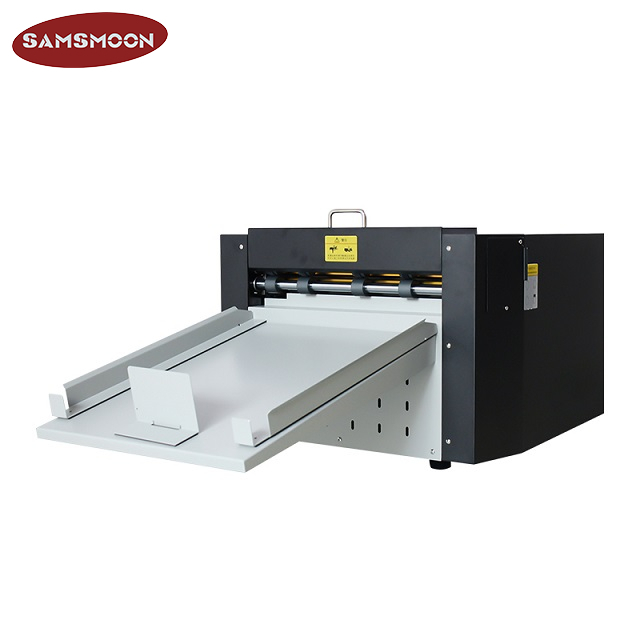

SCM-900E Digital Creasing Machine

1.Max. Feeding Width:340*900mm
2.Min. Paper Size:50*90mm
3.Creasing Width:1.2mm
4.Function:Creasing, Perforating
5.Paper Weight:60-400g/㎡ (creasing) 60-200g/㎡ (perforating)
6.Paper Type:Art Paper, Laminating Paper, Copy Paper and so on
  • SCM-900E
  • Samsmoon
Availability:
Quantity:

SCM-900E Digital Creasing Machine


*Features


1. Steel trolley wheel creasing paper

The output paper trolley wheel is made of steel, which is not easy to jam and durable

2. Replacement blades design

The creasing blade and the perforating blade are equipped with one set each, which is easy to replace

3. Lengthened in and out of cardboard

Easy to operate, increase the capacity of indentation paper collection

4. Larger screen clarity

Using large LCD screen, the data setting display is more clear

5. Intelligent program control, labor-saving and efficient

The operating system adopts high-speed chip control, digital input of creasing/ perforating position, multiple lines (maximum 32), machine fault self-checking and other high-tech designs, making creasing/ perforating easy and efficient, greatly improving work efficiency.

 6. Polymer Blade

creasing blade and perforating blade adopts polymer blade strip, which is sturdy and durable

7. Free adjustment of  creasing depth

The pressure of the creasing and perforating can be adjusted freely according to the thickness and requirements of the paper. It is flexible and versatile to meet the creasing and perforating of various papers.

8. The paper feed baffle is magnetically movable

There are paper feed baffles on both sides of the paper feed table, which are magnetically movable, flexible positioning, and flatter against the paper, increasing the efficiency of creasing, and feeding the paper more smoothly and quickly


*Specification

ModelSCM-900E
Max. Feeding Width340*900mm
Min. Paper Size50*90mm
Creasing Width1.2mm
Paper Feeding ModeManual Feeder
Functioncreasing, Perforating
Paper Weight60-400g/㎡ (creasing) 60-200g/㎡ (perforating)
Paper TypeArt Paper, Laminating Paper, Copy Paper and so on
Working Precision±0.3mm
Working Speed2400 sheets/hour (A4, creasing one line)
Creasing Times of One Sheet0-32 times
Power Supply220V, 50HZ; 110V, 60HZ
Machine Dimension1170*520*410mm
Packing Size620*620*520mm
WeightNet: 42kgs; Gross: 48kgs
