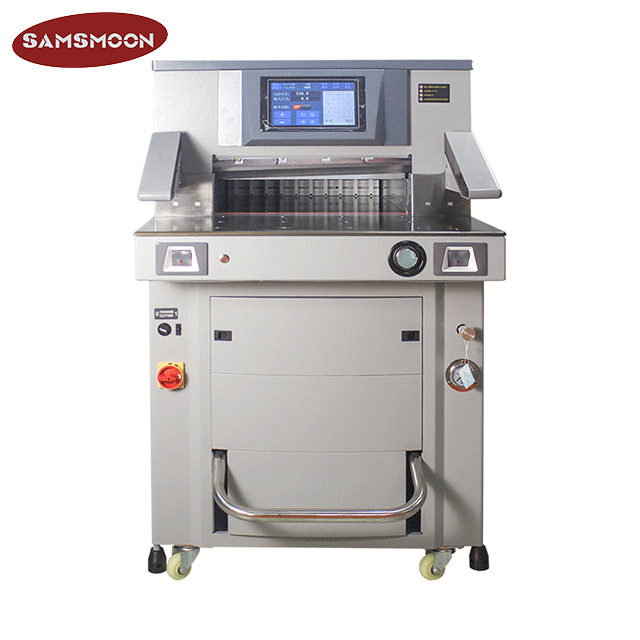

Hydraulic Programmable Paper Cutting Machine
Technical Parameters:
| Model | SPC-6810 |
| Max.cutting size | 680*680mm |
| Min.cutting size | 30mm |
| Max cutting thickness | 100mm |
| Cutting precision | ±0.2mm |
| Press mode | Hydraulic |
| Cut mode | Hydraulic |
| Push mode | Program control |
| Display | 10inch touch screen |
| Cutting line | Yes |
| Infrared protection | Yes |
| Motor power | 3000w |
| Voltage | 220V/50HZ |
| Machine size | 1400*1020*1000mm |
| Net weight/Gross weight | 500KG/550KG |
Main features:
1.Hydraulic power control system, joint-venture brand motors, provide strong power, Taiwan hydraulic control technology ensures the quality of the machine.
2.10 inch touch screen, program control, segment, numerical control, and one-key switching of different scenes.
3.The heavy-duty frame adopts special craftsmanship, is not easy to be deformed, and the cutting accuracy is guaranteed.
4.Snake-shaped strip: the strip will not move when cutting, ensuring the cutting effect of the last piece of paper.
5.The patented design of the foldable structure of the paper pushing platform solves the probelm of the inaccessibility of machines in business offices and reduces the transportation costs.
6.The design of the mechanical foot pedal press paper device, press paper alignment, easy and reliable, meets European CE safety standards, machine stability characteristics, suitable for thick paper cutting.
7.The paper feeding table and the operating table are made of 10mm thick stainless steel plate, the platform floating bead design, the paper pushing flexibly, solving the paper jam at the bottom of the paper.
8. The rear full closed cover type, the pront closed infrared safety device, and the double button cutting type is used to ensure the safety of the operator and other people.
9.Static hydraulic pump, paper clamping pressure and paper cutting pressure can be adjusted according to the cutting product,with low noise, strong and durable.
Products detailed pictures:
Package:
