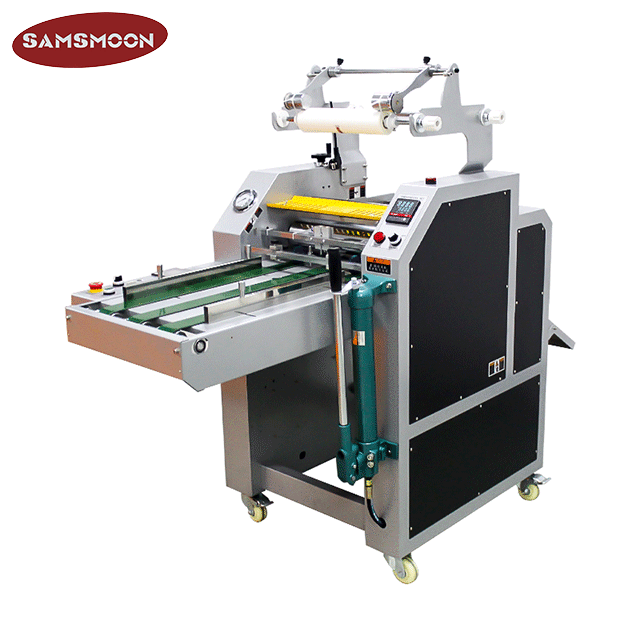

Electric Automatic Roll Laminating Machine
Product main featurers:
1.PLC intelligent control, touch screen display system, frequency convension speed regulation, 250w three-phase AC wheel box geared motor.
2.The synchronous conveyor belt automatically feeds paper, automatically overlaps the size( the overlap size can be set arbitraily), and teh finished product is automatically divided( pneumatically divided).
3.Intelligent temperature control, double protection of temperature out of control alarm, infrared internal heating.
4.Manual hydraulic control system, anti-vibration pressure indicator.
5.Single side anti-curling, equipped with trimming cutter and detted cutter.
6.The diameter of the steel roller is 110mm, and the diameter of the lower rubber roller is 75mm.
7.The lower rubber is made of non-adhesive and high temperature resistant silica gel.
Technical parameters:
| Model | SRL-39PH |
| Max.liminating width | 390mm |
| Max liminating thickness | 2mm |
| Laminating speed | 0~8m/min |
| Max.liminating temperature | 160℃ |
| Display | LCD |
| Steel roller diameter | 110mm |
| Rubber roller diameter | 75mm |
| Heating method | Infrared internal heating |
| Heating power | 1600w |
| Motor power | 250w |
| Anti-curling function | Yes |
| Auto overlap function | Yes |
| Auto pull off function | Yes |
| Voltage | 220V/50HZ |
| Machine size | 1450*800*1380mm |
| Net weight/Gross weight | 210kg/260kg |
Product show:
