Electric Automatic Roll Laminating Machine
Product main featurers:
1.Suitable for all kinds of paper laminating, single/double side laminating, roll to roll laminating, finished product winding, single side anti-curling, and the laminating effect is flat and not bend.
2.Multifunctional body, with optional ironing function.
3.The conveyor belt feeds paper synchronously, and the finished product is automatically wound up.
4.Large-diameter mirror steel roller, 100mm in diameter, chrome-plated on the surface, the mirror effect is good.
5.The laminating pressure is very compact, and the laminating effect is good,no bubbles, no snowflakes.
6.Intelligent temperature control system, precise temperature control, the highest temperature is 160℃, temperature out of control alarm system, double protection.
7.Large power 80w AC wheel box geared motor, which can rotate forward/reversely, without extreme regulation, the fastest laminating speed is 5m/min.
8.Single side anti-curling, the laminating effect is smooth and no bend.
Technical parameters:
| Model | SRL-35E |
| Max.liminating width | 350mm |
| Max liminating thickness | 2mm |
| Laminating speed | 0~6m/min |
| Max.liminating temperature | 160℃ |
| Display | LCD |
| Steel roller diameter | 100mm |
| Rubber roller diameter | 75mm |
| Heating method | Infrared internal heating |
| Heating power | 1600w |
| Motor power | 80w |
| Anti-curling function | Yes |
| Auto overlap function | No |
| Auto pull off function | No |
| Voltage | 220V/50HZ |
| Machine size | 1220*700*740 |
| Net weight/Gross weight | 100kg/120kg |

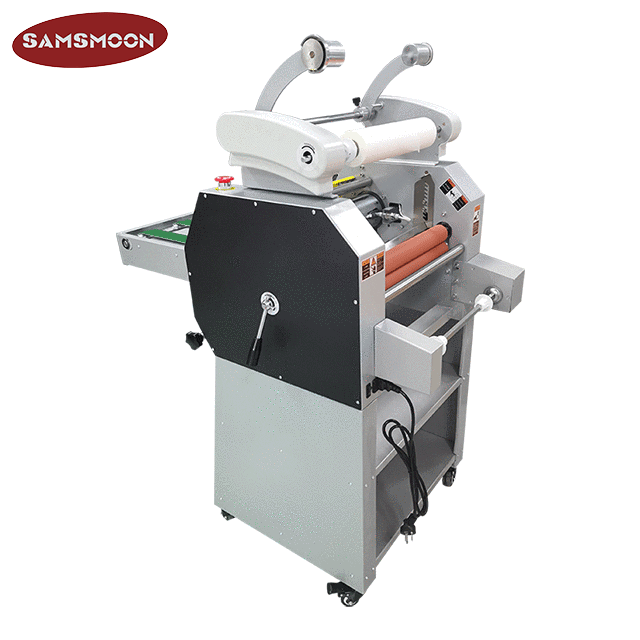

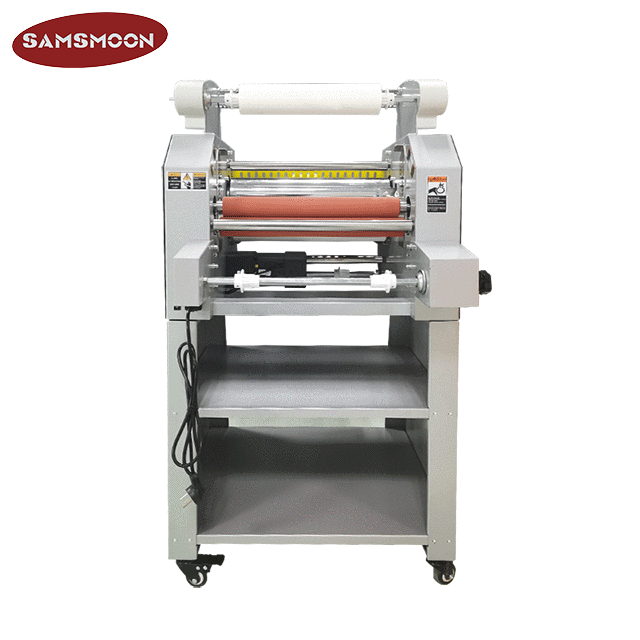

Product show:
Package:
