Hydraulic Programmable Paper Cutter Machine

  • SPC-498HP
  • Samsmoon
Quantity:

Hydraulic Programmable Paper Cutting Machine


Technical Parameters:

Model SPC-498HP
Max.cutting size 490*490mm
Min.cutting size  30mm
Max cutting thickness 80mm
Cutting precision ±0.2mm
Press mode Hydraulic
Cut mode Hydraulic
Push mode Program control
Display 7 inch touch screen
Cutting line
Yes
Infrared protection Yes
Motor power  2000w
Voltage
220V/50HZ
Machine size  1400*780*1180mm
Net weight/Gross weight 380KG/430KG


Main features:

1.Hydraulic power control system, joint-venture brand motors, provide strong power, Taiwan hydraulic control technology ensures the quality of the machine.

2.7 inch touch screen, program control, segment, numerical control, and one-key switching of different scenes.

3.The heavy-duty frame adopts special craftsmanship, is not easy to be deformed, and the cutting accuracy is guaranteed.

4.Snake-shaped strip: the strip will not move when cutting, ensuring the cutting effect of the last piece of paper.

5.The patented design of the foldable structure of the paper pushing platform solves the probelm of the inaccessibility of machines in business offices and reduces the transportation costs.

6.The design of the mechanical foot pedal press paper device, press paper alignment, easy and reliable, meets European CE safety standards, machine stability characteristics, suitable  for thick paper cutting.

7.The paper feeding table and the operating table are made of 10mm thick stainless steel plate, the platform floating bead design, the paper pushing flexibly, solving the paper jam at the bottom of the paper.

8. The rear full closed cover type, the pront closed infrared safety device, and the double button cutting type is used to ensure the safety of the operator and other people.

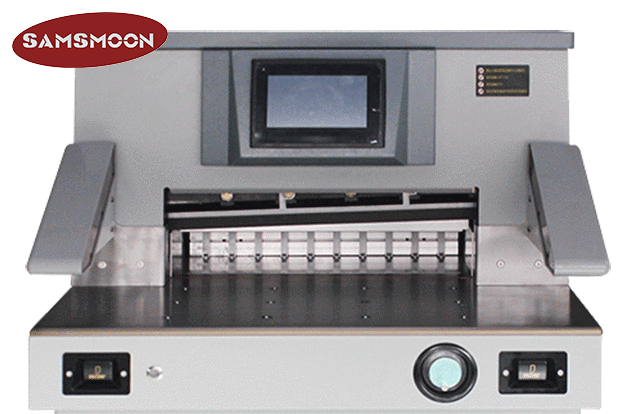

Products detailed pictures:

4-1


Package:

包装和发货图
